Vacuum pumps play a critical role in many industrial applications, from chemical processing and pharmaceuticals to food packaging and semiconductor manufacturing. One of the most destructive phenomena affecting vacuum pump performance and longevity is cavitation. Often unnoticed until significant damage is done, cavitation can lead to costly downtime, repairs, and system inefficiencies. This article delves into what cavitation is, why it’s such a critical issue, its impact on vacuum systems, and practical strategies for prevention.

Why Is Cavitation a Critical Issue?

Cavitation is more than just a mechanical inconvenience—it’s a serious operational hazard. At its core, cavitation involves the formation and violent collapse of vapor bubbles within a liquid. When this occurs inside a vacuum pump, it can:

• Severely erode internal components

• Compromise pump performance

• Increase maintenance frequency and costs

• Shorten the operational life of the equipment

• Cause unplanned plant shutdowns

Since vacuum pumps are often integral to continuous processes, even a short-term failure due to cavitation can have ripple effects on overall productivity and product quality. That’s why early detection and prevention of cavitation are essential in maintaining reliable vacuum operations.

What Is Cavitation in Vacuum Pumps?

Cavitation in vacuum pumps occurs when the pressure inside the pump drops below the vapor pressure of the operating fluid (usually water, oil, or process liquid). When this happens, the fluid begins to vaporize, forming vapor-filled bubbles. As these bubbles move to areas of higher pressure within the pump (such as the compression zone), they collapse or implode with immense force. This implosion generates shockwaves strong enough to damage metal surfaces.

Two main types of cavitation in vacuum pumps include:

1. Suction Cavitation – Occurs when fluid is drawn into the pump at very low pressure, often due to restricted flow or excessive pump speed. The fluid doesn’t have time to fill the chamber, resulting in vapor formation.

2. Discharge Cavitation – Takes place when there’s a blockage or restriction at the discharge side, causing the pressure to rise unevenly and creating localized vaporization.

Common causes of cavitation:

• Operating the pump too close to its vapor pressure limit

• Inadequate NPSH (Net Positive Suction Head)

• Excessive fluid temperature

• Inlet restrictions or blockages

• High pump speeds

• Using an improperly sized pump for the application

Effects of Cavitation on Vacuum Systems

Unchecked cavitation can have wide-ranging consequences for vacuum pumps and associated systems:

1. Physical Damage

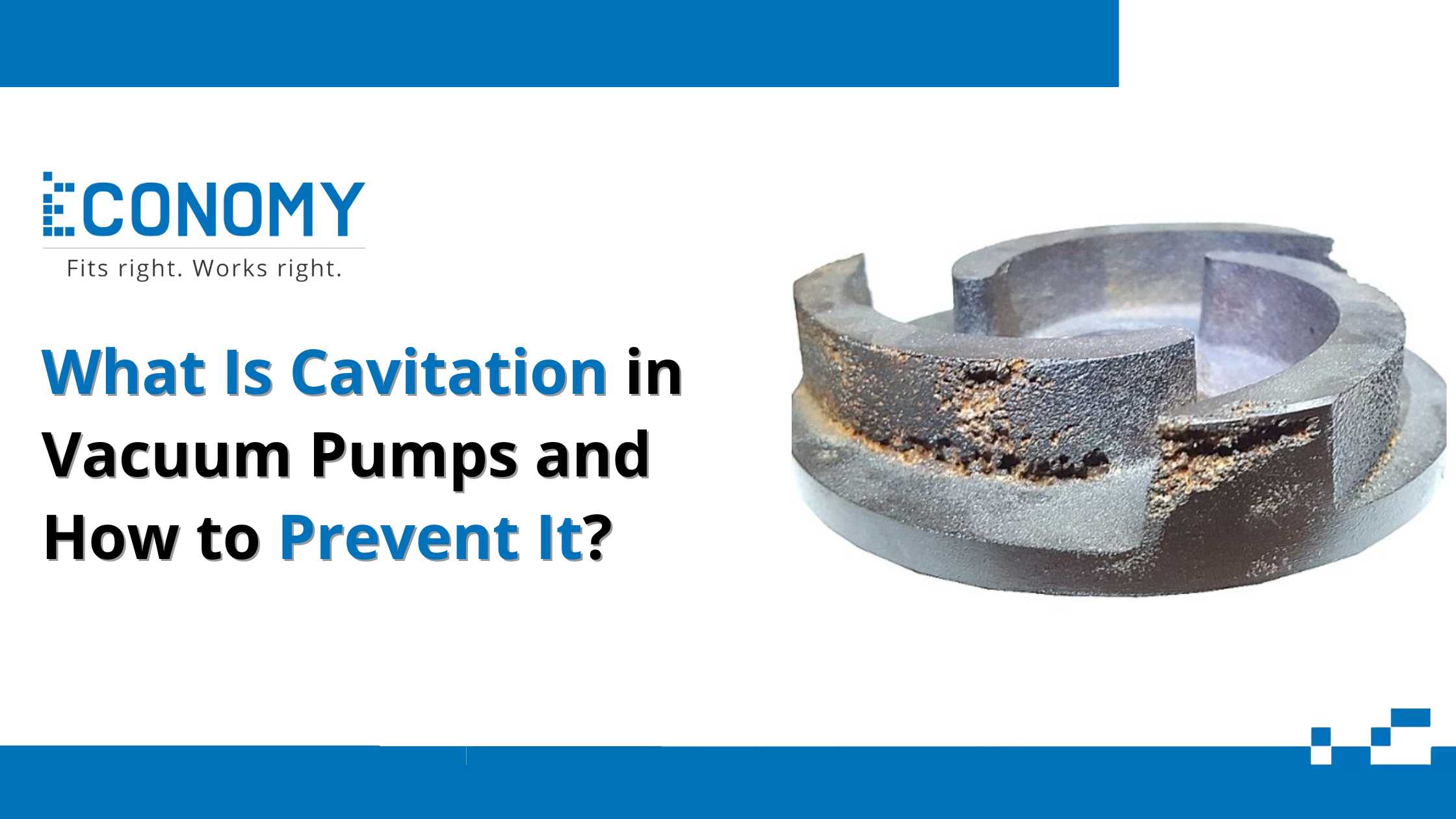

The implosion of vapor bubbles causes intense localized pressure, leading to pitting and erosion of metal surfaces, especially impellers, vanes, and pump casings. Over time, this can significantly degrade pump performance.

2. Noise and Vibration

Cavitation often produces a distinctive “gravel” or “hammering” sound. It’s usually accompanied by increased vibration, which can cause misalignment and stress on bearings and seals.

3. Reduced Pump Efficiency

Vapor bubbles displace the fluid inside the pump, reducing volumetric efficiency. This results in lower throughput and increased power consumption for the same output.

4. System Contamination

In severe cases, metal particles from erosion can enter the pumped media, contaminating the process and affecting product quality.

5. Complete Pump Failure

Left untreated, cavitation can cause catastrophic damage to the pump, leading to complete mechanical failure and production losses.

How to Prevent Cavitation in Vacuum Pumps

Cavitation is largely preventable through correct design, monitoring, and maintenance practices. Here are effective strategies to minimize the risk:

1. Maintain Proper Inlet Pressure

Ensure the inlet pressure is always above the vapor pressure of the operating fluid. This might involve increasing fluid supply head, reducing inlet piping length, or avoiding sharp bends and restrictions.

2. Control Fluid Temperature

Warmer fluids have lower vapor pressure and are more prone to cavitation. Use cooling systems or pre-cool fluids before entry into the pump if operating conditions are high-temperature.

3. Ensure Sufficient NPSH (Net Positive Suction Head)

Select a pump with the proper NPSH requirements for your application. Insufficient NPSH is a common cause of cavitation in vacuum systems.

4. Avoid Overspeeding

Running a pump faster than its design speed can drop the internal pressure below vapor pressure. Always adhere to manufacturer speed ratings.

5. Use Appropriate Pump Type

Some pump types are more resistant to cavitation. For example, dry screw vacuum pumps or liquid ring pumps have design features that help mitigate cavitation risks in demanding applications.

6. Install Cavitation Monitoring Devices

Modern systems can be fitted with sensors to detect early signs of cavitation via changes in vibration, noise, and pressure. Early detection allows for preventive intervention.

7. Regular Maintenance and Inspection

Routine checks for worn parts, inlet blockages, and temperature anomalies can help identify cavitation risk factors before they escalate.

Conclusion



Cavitation in vacuum pumps is a silent killer that can severely affect performance, damage equipment, and increase operating costs. By understanding its causes and effects, and by implementing thoughtful design and operational strategies, industries can mitigate this risk and ensure long-term reliability of their vacuum systems. Prevention is always more cost-effective than repair—making cavitation awareness a must for every plant engineer and maintenance professional.
